Ce LuAG Scintillation Detector

Name: Ce LuAG Scintillation Detector
Brand: CRYLINK
Price: 1 USD

Place of Origin : China

Brand Name : CRYLINK

Certification : Iso9001

MOQ : 1 Pieces

Price : negotiation

Packaging Details : Carton

Delivery Time : 3-4 weeks

Payment Terms : TT

Supply Ability : 100 pieces /month

Model Number : CRYLINK-Ce LuAG Scintillator Crystal

Name : Ce LuAG Scintillation Detector

Clear Aperture : >90%

Orientation Tolerence : <0.5°

Length/Aperture Tolerance : ±0.05 mm

Parallel : 10

Surface quality : 10/5 (Scratch/Dig)

Contact Now

Product Details

Lutetium aluminum garnet (Ce:LuAG) activated by cerium is a well established scintillating material with the primary advantages of high density (6.73g/cm3) and fast decay (80ns), which is suitable for thin imaging screens. Besides, Ce:LuAG has a high photon yield and a central emission at 510nm that well matched with photodiode and avalanche diode readout. With very good chemical, mechanical and temperature resistance, Ce:LuAG is also an ideal choice for medical scanning systems and high-energy particle detectors.

Features

High density
Fast decay time
Suited for photodiode and avalanche diode readout
Very good chemical, mechanical and temperature resistance

Applications

Computed tomography (CT)
Positron emission computed tomography (PET)
Single-photon emission computed tomography (SPECT)
Particle accelerator
Laser & LED lighting

Polishing specifications

Surfaceflatness	</8 @632nm
Clear Aperture	>90%
Orientation Tolerence	<0.5°
Length/Aperture Tolerance	±0.05 mm
Parallel	10
Perpendicular	5
Surface quality	10/5 (Scratch/Dig)
Chamfer	<0.2×45°
Wavefront distorsion	</4@632 nm

Physical and chemical properties

Property	Value
Chemicalcomposition	Lu3Al5O12
Melting (℃)	2020℃
Symmetry	Cubic
Structure	Ia3d
Cellparameters ()	11.914
Hardness	8.5
Density (g/cm3)	6.73
Thermalconductivity (W/(℃.cm))	0.08 @ 25℃
expandingcoefficient (10-6/℃)	8.8
Refractive index (=550nm)	1.84

Scintillation properties

Emissionpeak (nm)	510
Lightyield (Photons/Mev)	15000
Relative lightoutput (%NaI:Tl)	20
Decaytime (ns)	80
Radiationlength for 511 keV (cm)	1.3
Energyresolution	<8%
Zeff	63

Product Tags:

cerium doped yttrium aluminum garnet

lutetium yttrium oxyorthosilicate

Quality Ce LuAG Scintillation Detector for sale

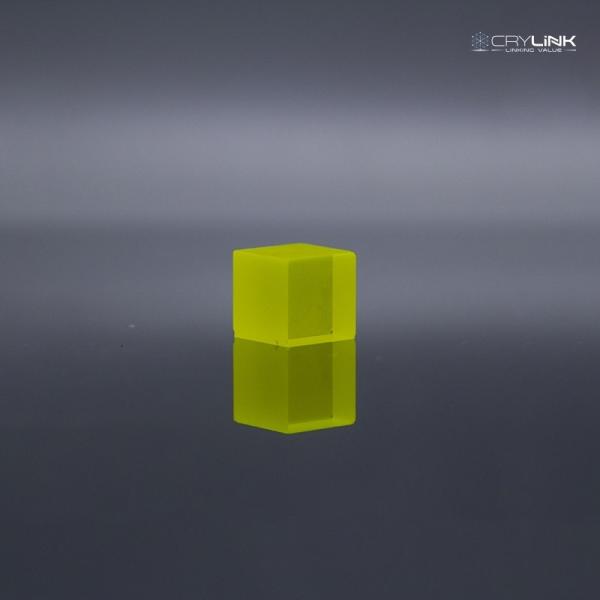

Ce LuAG Scintillation Detector Images
